PC4TB Threaded Circular Connector | Russian Standard PC Series Industrial Connector

Product Details:

PC Series Miniature Circular Electrical Connectors: Widely used for circuit connections in electronic instruments and devices. Compact, lightweight aluminum shell, sealed socket, threaded coupling.Available in flange (circular/square) and cable mount types.Pin counts: 4, 7, 10, 19, 32, 50. Fully interchangeable with Russian PC series connectors.

ATTRIBUTES:

Rated current:5A
Contact Resistance :<5MΩ
Insulation resistance:<1000MΩ
Temperature: -55ºC~+125ºC
Relative Humidity: 93% at 40±2ºC
Atmospheric pressure: 101.33~6.7kpa
Vibration, the peak impact acceleration: 10~2000Hz 196m / s 2
Mechanical shock, the peak impact acceleration: 196m / s 2
Endurance : 500cycles
Water proof: IP≥68
The connect is water-repellent in one meter deep water for 30 minutes

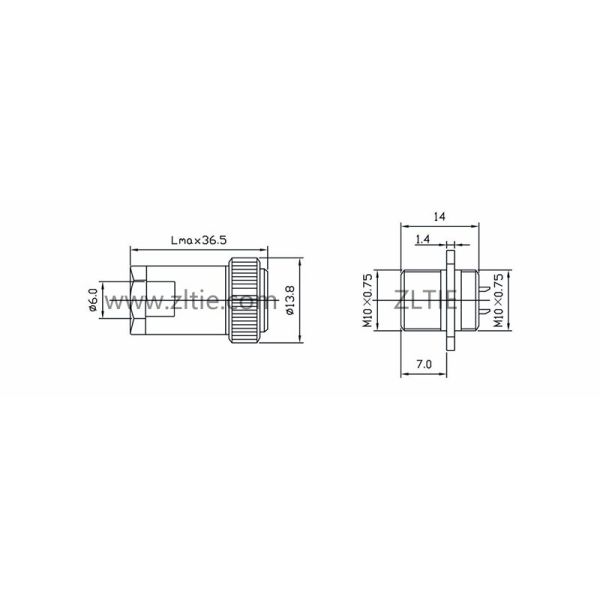

PC4TB Threaded Circular Connector | Russian Standard PC Series Industrial Connector Images
